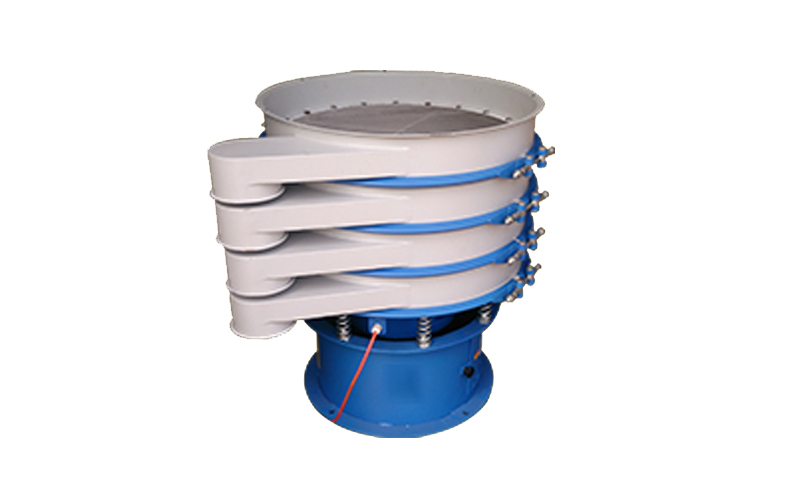

Mahakali Equipment Vibro screen (gyro screen) is Vibratory or Gyratory Sieving Machine designed on the principle of gyratory motion generated by vibro motor. Gyratory motion is the most effective method for screening.
Vibro screen are driven by vertically mounted vibratory motor having eccentric weight at the top & bottom end of the shaft. At the time of Motor rotation top weight causes vibration in Horizontal plane whereas the rotation of bottom weight causes tilt & vibrations in vertical plane. By changing their lead angle, various spiral-screening patterns are obtained to suit different application. "Mahakali Equipment" vibro screen provides optimum screening & assures maximum feed-rate & efficiency. Vibro screen is also known as gyro screen, vibrating screen, vibro sifter, vibro grader, rotary screen, etc...
Application
Mahakali Equipment Vibro screen Use in solid-solid, solid-liquid separation in different type of industries.
- Food Industry
- Oil Industries
- Pharmaceuticals
- Bulk Foods
- Minerals
- Plastics
Application
- Paper
- Others
- Agro Products
- Chemical Industry
- Metal Powder
- Refractory
- Ceramics
- Spices
- Sugar
Salient Feature
- Increased accuracy and material control – Full material flow on up to 4 sieve decks
- Higher screening capacities – up to 50% more compared to a conventional vibro separator
- Improved cleanability – Hygienic open frame design providing improved cleaning
Model
| Model | Machine Dia.MM | Machine Dia.Inch | Motor HP |
|---|---|---|---|
| VMS24 | 610 | 24" | 0.5 / 1 |
| VMS30 | 770 | 30" | 0.5 / 1 |
| VMS36 | 900 | 36” | 1 / 2 |
| VMS48 | 1200 | 48” | 2 / 3 |
| VMS60 | 1500 | 60” | 3 / 5 |
| VMS72 | 1800 | 72” | 5 / 7.5 |
