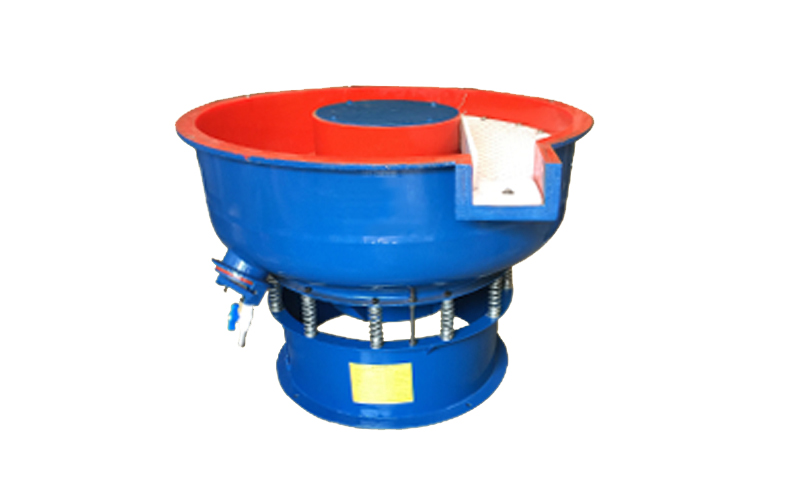

Mahakali Equipment Auto Separation Vibro Finishing Machine is a bowl type finishing machine. The bowl is coated with rubber or PU lining. The machine bowl is loaded with suitable finishing media and the components be processed. The interaction between the finishing media and the work piece results in deburring, descaling, rounding of corners and polishing of the work piece. In auto discharge machines there is in-built part-media separation arrangement.
At the end of the process machine flap is lowered into the bowl automatically & part media mixture is comes over to the separation sheet. The media will fall down in the bowl & parts come out of machine.
ADVANTAGES
- Automatic separation of part & media.
- Rubber / PU line Bowl.
- 85 - 100 % separation can be achieved.
- Suitable for light & delicate parts.
- Can be added in Continues production system.
Application
- Deburring
- Surface Finishing
- Edge Radiusing
- Heavy Cutting
- Pre Plating Finish
- Surface Improvement
- Drying
- Deoiling
- Burnishing
Application
- Brightening
- Polishing
- Fine Finishing
- Surface Smoothness
- Mirror Polishing
- Degreasing
- Delining
- Derusting
- Descaling
Model
Mahakali Equipment Auto Separation vibro Finishing Machine available in Rubber & PU Lining. Machine motors are manufacture by us. Motor power supply is 3 Ph. 440 V 50 Hz.
| Model | Machine Capacity | Machine Dia. (M.M.) | Motor HP |
|---|---|---|---|
| VMFB 60 | 60 Lit. | 900 | 1 |
| VMFB 120 | 120 Lit. | 1020 | 2 |
| VMFB 200 | 200 Lit. | 1150 | 3 |
| VMFB 300 | 300 Lit. | 1300 | 3 |
| VMFB 430 | 400 Lit. | 1460 | 5 |
| VMFB 600 | 600 Lit. | 1600 | 5 |
