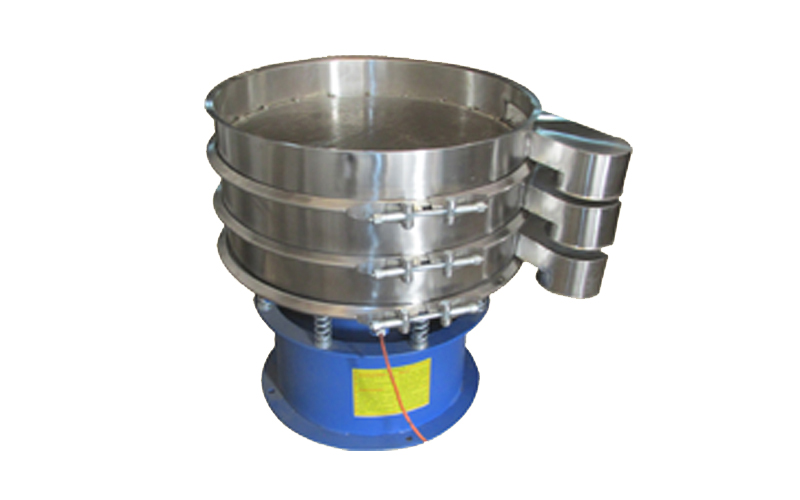

GYRO SCREEN
Gyro Screen is the circular screens operating with special Vibratory Motor imparting vibration in multiple directions to the screen assembly. Gyratory motion is the most effective method for screening, complete machine consists of Vibration generating base which houses the Vibratory Motor and Screening Assembly with wire mesh or perforated sheet.
The material fed on the screen travels above the screen or passes through the screen depending upon its particle size and nature. "Mahakali Equipment" gyro screen provides optimum screening & assures maximum feed-rate & efficiency.
1
APPLICATION
Mahakali Equipment Gyro screen use in solid-solid, solid-liquid separation in different type of industries.
- Plastic and Polymer
- Minerals
- Metals
- Pharmaceuticals
- Herbal
- Chemical
- Agro
- Paper and Pulp
2
APPLICATION
- Engineering
- Spices
- Refractories
- Abrasives
- Ceramic
- Starch
- Glucose
- Dairy Industry
- Pesticides
- Insecticides
- Soap and Detergent
3
FEATURES
- Low Space Requirements
- Lower Noise Levels
- Dust Proof Enclosed System
- Accurate Separation Efficiency
- Lesser Maintenance and Power Consumption
- Ball Tray for Anti-Blinding
- Multi Deck Models Available
Model
| Model | Machine Dia.MM | Machine Dia.Inch | Motor HP |
|---|---|---|---|
| VMS24 | 610 | 24" | 0.5 / 1 |
| VMS30 | 770 | 30" | 0.5 / 1 |
| VMS36 | 900 | 36” | 1 / 2 |
| VMS48 | 1200 | 48” | 2 / 3 |
| VMS60 | 1500 | 60” | 3 / 5 |
| VMS72 | 1800 | 72” | 5 / 7.5 |
