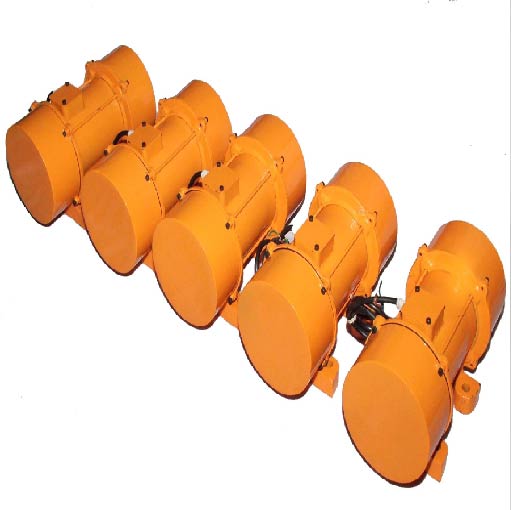

VIBRATORY MOTOR
Unbalance motors are a synchronous AC Motors with pairs of centrifugal weight fitted to the ends of the motor shafts. The size of the unbalance and with it the amplitude of the oscillation by the working unit can be adjusted by shifting the centrifugal weights when the motor is at a stanstill. The unbalance motors are also available in a special version for mains voltages up to 440V and for a mains frequncy ranging from 50 Hz to 60 Hz. we are work on unbalanced motor last since year.
1
ADVANTAGES
- Centrifugal force range of the type series : 0-12000 Kgs/Meter
- Operating Voltages : Standard version 380/440 V, 50/60 Hz, others on request.
- Ambient temperature : 25째 C to 80째 C, different temperature ranges on request.
- Insulation Class : F
- Operation : Continuous Service at the maximum indicated centrifugal force and Electric Power rating.
- Fixing : The Electric vibration can be fixed in all positions with no limitations.
- Terminal Box : Sized to make the electrical connections easier.
- Bearings : The lower and upper bearings have been designed to support the relative load.
- Drive Shaft : Oversized, made of treated steel and able to withstand high stress.

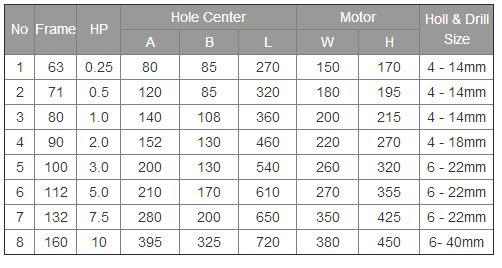

Model
| No | frame | HP | OD | PCD | Motor Length | NOS.Of Holls |
|---|---|---|---|---|---|---|
| 1 | 63 | 0.25 | 180 | 160 | 201 | 14mmx6no5 |
| 2 | 71 | 0.5 | 225 | 180 | 270 | 14mmx6no5 |
| 3 | 80 | 1.0 | 270 | 230 | 310 | 15mmx6no5 |
| 4 | 90 | 2.0 | 270 | 230 | 370 | 22mmx6no5 |
| 5 | 100 | 3.0 | 300 | 270 | 370 | 22mmx6no5 |
| 6 | 112 | 5.0 | 350 | 300 | 440 | 27mmx6no5 |
| 7 | 132 | 7.5 | 410 | 360 | 510 | 27mmx6no5 |
| 8 | 160 | 10 | 450 | 400 | 550 | 27mmx6no5 |
